HOLMES DESK FAN/

The desk fan, re-envisioned to last.

Timeline: 4 months

Role: UX Researcher, Industrial Designer

Tools: Rhino, Solidworks, Keyshot, Photoshop, Concepts, Sketchbook, Google Docs, Okala Practitioner Guide

PROJECT OVERVIEW

The Holmes Heritage table fan is a popular appliance appreciated for its classic design and reliable performance. However, the current model is difficult to clean and repair, often leading to unnecesary waste. This project redesigns the Holmes Heritage fan to address these issues.

THE CHALLENGE

The challenge is to enhance ease of use and performance while also integrating sustainability in a holistic manner.

THE SOLUTION

The redesign addresses the fan’s lifecycle before, during, and after use. Recyclable aluminum and labeled plastics are specified for easy recycling after the fan’s life. Replaceable lithium-ion batteries extend usability during its lifespan, while modular components and standard fasteners ensure simple disassembly and repair, making maintenance easy throughout the fan’s use.

PROCESS I: RESEARCH

PRODUCT BACKGROUND/

Holmes Heritage Table Fan

Item Model Number: HDF0646-CTU

COMPETITIVE RESEARCH/

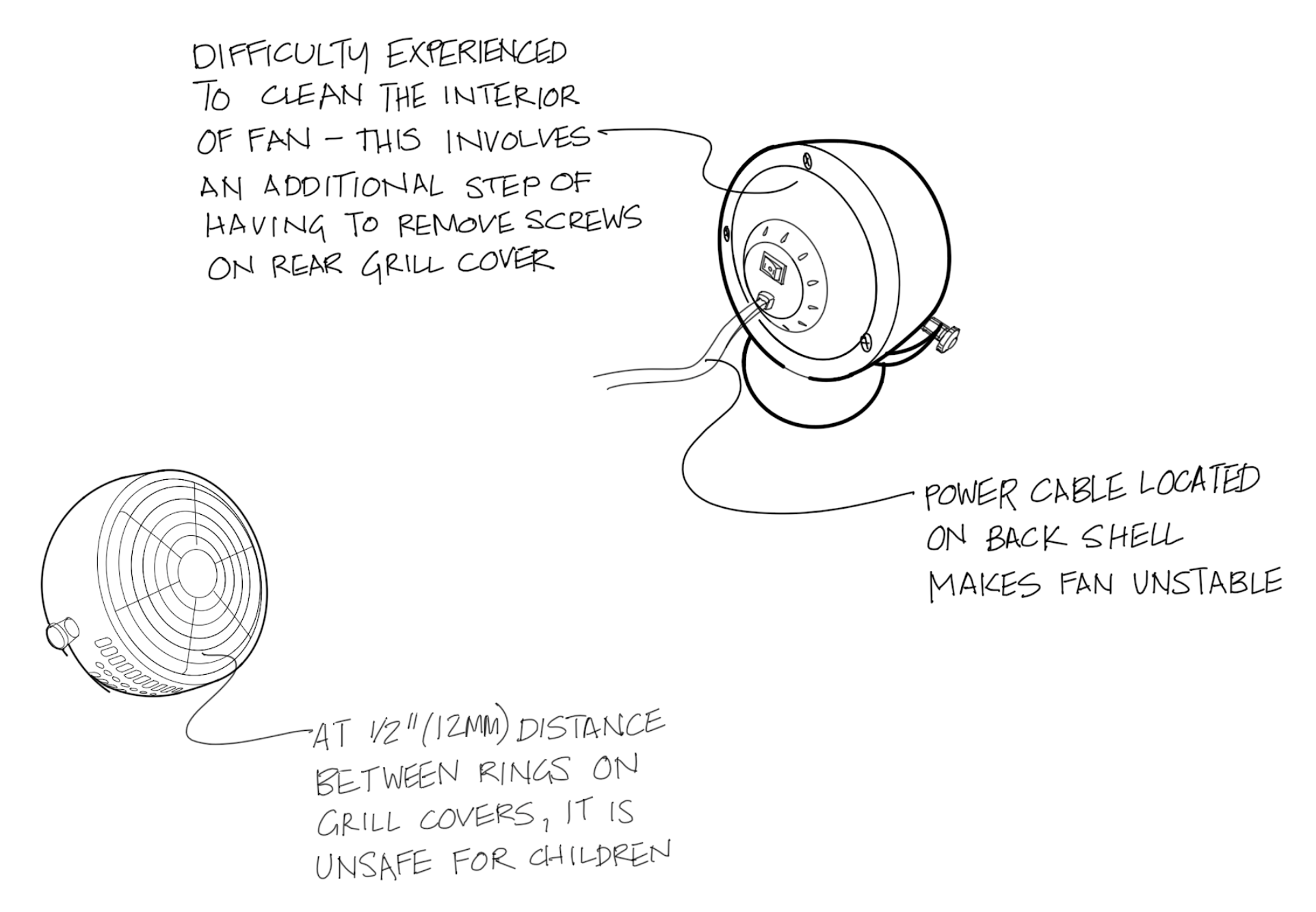

PRODUCT ANALYSIS/

TASK ANALYSIS/

INTERVIEWS/

LIFE CYCLE ASSESSMENT/ PRODUCT TEARDOWN

LIFE CYCLE ASSESSMENT/ CATALOG OF COMPONENTS

LIFE CYCLE ASSESSMENT/ ENVIRONMENTAL IMPACT ESTIMATE

PROCESS II: SYNTHESIS

HIERARCHY OF USER NEEDS/

KEY INSIGHTS/

  1. The fan has a very limited range of adjustment and only blows in one direction at the time

  2. Adjustment knobs for rotation arc are scaled disproportionately for most hands

  3. A thin mast section above metal plate is a very unstable to stabilize upper part of fan

  4. Interviewees would prefer to have the portability and convenience of a wireless option

  5. The spacing of the rings on the shell is still too wide and could harm small children

  6. Fan must be unscrewed to clean thoroughly

  7. The handle is too small for most hands

  8. Switch operability is unintuitive

  9. Rotation arc has limited range of motion

  10. Power cord in rear destabilizes the fan

OPPORTUNITY/

How might we create a fan that balances performance, ease of use, and sustainability, encouraging repairs and reducing waste?

PROCESS III: DESIGN

IDEATION/

FINAL DESIGN/

ENVIRONMENTAL IMPACT ESTIMATE/
